Unique Mixproof Process
Safeguard process fluids at valve matrices and pipelines using the cost-effective Alfa Laval Unique Mixproof Process valve. This economical version of our premium double seat mixproof valves with seat lift eliminates the risk of cross-contamination. High cleanability, the ability to withstand pressure peaks, and fit-for-purpose components make this valve a great addition to dairy, food and beverage applications. It is available in various sizes to meet your hygienic processing requirements.
Cost-effective double seat valve for fundamental mixproof functionality in hygienic applications
- Get the product safety you need by eliminating the risk of cross-contamination and product loss while ensuring efficient cleaning
- Enhance the reliability and flexibility of your process setup with proven valve technology tailored to your specific production needs
- Minimize the risk of unplanned downtime while spending as little time and resources as possible on routine maintenance
- Minimize your environmental impact with significant reductions in the use of water and CIP media and no spillage or product loss
- Predefined and available in various sizes that meet your fundamental hygienic processing requirements
The Alfa Laval Unique Mixproof Process is a fit-for-purpose double seat valve with a seat lift function. Based on the proven Unique Mixproof and Unique Single seat valves, it is certified to FDA, 3A and other recognized standards.
The Unique Mixproof Process protects your products, even at high pressures. Its modular design makes it easy to adapt to various applications, capacity requirements and changing needs.
Service is simplified thanks to a maintenance-free actuator and proven seal technology with defined compression that prolongs the time between maintenance intervals. What’s more, enhance sustainability credentials by combining the valve with an Alfa Laval ThinkTop valve control unit for up to 90% savings in water, cleaning media and wastewater costs.
How does the Unique Mixproof Process valve work
The Alfa Laval Unique Mixproof Process valve is a normally closed valve (NC) controlled from a remote location by means of compressed air. The double seat valve has two independent plugs and seals to separate the liquids; the space between the seals forms a leakage chamber at atmospheric pressure under every operating condition. Leakage rarely occurs, but should it occur, the product flows into the leakage chamber and drains through the outlet at the bottom of the chamber for easy detection.
When the unique mixproof valve is open, the leakage chamber is closed. The product then flows from one line to the other. The well-known radial design of the valve ensures that virtually no product spillage occurs during valve operation.
'Close at Hand' Katalog
"Close at Hand" hijyenik ekipman ürün kataloğunda ürün broşürleri, animasyon bağlantıları, sipariş amaçlı broşürler ve listeler yer alıyor.
CAD portalı
Alfa Laval CAD portalı, ayrıntılı ürün bilgilerinin, 2D çizimlerinin ve 3D ürün modellerinin indirilebilmesi için önemli bir platformdur.
Servis
Küresel Servis Ağımız, nerede olursanız olun, ne zaman ihtiyacınız olursa olsun, parça ve uzmanlıkla sizi destekler. Daha fazla çalışma süresi, kullanılabilirlik ve optimizasyon avantajları sunarak, yatırım getirinizi en üst düzeye çıkararak gönül rahatlığına kavuşmanızı sağlıyoruz. Öngörülebilir sorunlara çözüm ve sorunsuz operasyonlar için hizmetlerimizi Alfa Laval Servis Anlaşmasına entegre etmek üzere sizinle birlikte çalışabiliriz.
Hizmet teklifimiz hakkında daha fazla bilgi edinin Sorun Giderme
Seri numarası arama Sertifikasyon
Sorularınız için lütfen bizimle iletişime geçin.
Uygulama ve İnovasyon Merkezini ziyaret edin
Ekipmanlarınızı yükseltmeye karar vermeden önce operayonunuza en uygun ekipmanı belirlemek ve somut kazancınızı elde etmek ister misiniz? Alfa Laval Uygulama ve Yenilik Merkezi'nde bunu yapabilirsiniz.
Alfa Laval'dan Optimize™
Alfa Laval Optimize™ sadece küçük ve risksiz yatırımlarla mevcut sistemlerinizi güçlendirerek su, enerji ve kimyasallarda %90'a varan tasarruf sağlar.
Protect your product
Get the product safety you need by eliminating the risk of cross-contamination and product loss, while ensuring efficient cleaning.
Boost your process
Enhance the reliability and flexibility of your process setup, with proven valve technology that matches the specific needs of your production.

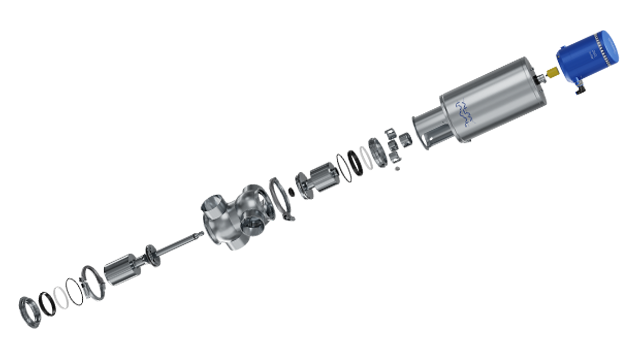

Simplify your service
Minimize the risk of unplanned downtime, while spending as little time and resources as possible on routine maintenance.
Improve your sustainability
Limit your environmental impact, with greatly reduced water- and CIP media consumption and eliminated product loss.
Designed to maximize uptime in production, keeping service at a minimum.
Eliminate unnecessary product loss, thanks to spillage-free operation.
By adding the intelligence of Alfa Laval ThinkTop, you save up to 90% in water and cleaning media.
360° Servis ve bakım videoları
Bunlar da ilginizi çekebilir...

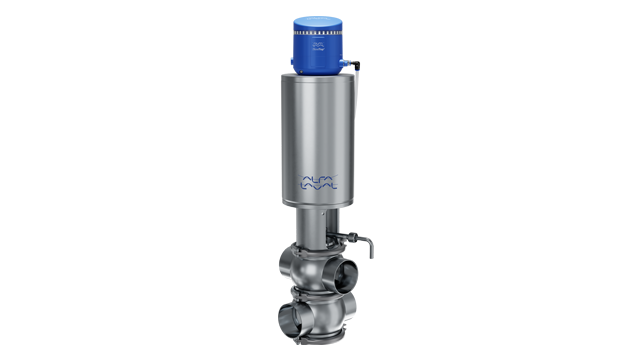

Secure Cleaning-in-Place and product safety with Unique Mixproof
