Kaynaklı spiral eşanjörler

Alfa Laval spiral ısı eşanjörleri, ısı transferindeki tüm zorlukların üstesinden gelmek için tasarlanmıştır. Kirli akışkanlara bağlı olarak yaşanan sık tıkanma problemleri veya basınç düşümü ve montaj alanı sınırlamaları olabilecek sıvı-sıvı ve iki fazlı uygulamalarda nihai çözüm sağlarlar. Sağlam, verimli ve kompakt tasarımlar, hem kurulum hem de bakım maliyetlerini son derece düşük tutar ve kirlenme sorununu neredeyse tamamen ortadan kaldırır.

Welded spiral heat exchanger

Alfa Laval spiral ısı eşanjörleri ile sürdürülebilirliği yakalayın

  • Çok kirli, yüksek viskoziteli veya partikül içeren proseslerde minimum kirlenme/tıkanma sayesinde maksimum operasyon süresi sağlar
  • Kolay açılır tasarım, temizliği hızlı ve basit hale getirerek düşük bakım maliyetleri sağlar
  • Azaltılmış borulama işi ve çelik yapılar, daha düşük kurulum maliyetleri anlamına gelir
  • Shell-and-tube eşanjörler ile karşılaştırıldığında 2-3 kat daha fazla termal verimlilik sayesinde enerji tasarrufu ve düşük emisyon sağlar
  • Her bir ünite, en iyi termal görevi sağlayacak şekilde tamamen prosesinize özel üretilir

Alfa Laval, spiral teknolojisinde yarım yüzyıldan fazla deneyime sahip piyasadaki tek tedarikçidir. Bugün spiral ısı eşanjörlerimiz, petrokimya, rafineri, çelik üretimi, kağıt, maden işleme (metaller, cevher), atık su arıtma (belediye ve endüstriyel), ilaç, bitkisel yağ arıtma ve doğal gaz taşımacılığı gibi endüstrilerdeki zor görevleri çözen dünya çapındaki tesislerde kullanılır.



Service for Alfa Laval spiral heat exchangers

Check out our many service offerings as well as our useful tips on how to keep your spiral heat exchanger in tip top condition.

engineer wearing hard hat and safety glasses holding laptop in front of pipes and blue sky


SpiralPro for liquid-to-liquid duties

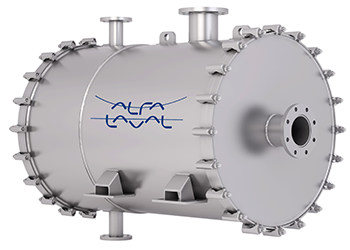

Alfa Laval SpiralPro heat exchanger for liquid-to-liquid duties

Alfa Laval’s SelfClean™ construction makes SpiralPro model heat exchangers a smart choice when working with dirty fluids, sludges, emulsions, slurries, fibres or particle loaded liquids. Since the fluids flow continuously in one single channel, the fluid force acts against any deposits, “pushing” them through the channel and out the other end.

The compact nature of the SpiralPro model often allows several large shell-and-tubes heat exchangers to be replaced by one single SpiralPro exchanger. This creates considerable infrastructure benefits in addition to reducing maintenance and cleaning requirements. If the unit needs cleaning, the covers can easily be removed for washing with a hydro jet.


  • Fouling liquids containing solids, fibres, liquors, slurries and sludges
  • Liquid-to-liquid preheating, heating, cooling, interchanging and heat recovery

Download product leaflet           Watch product animation

SpiralPro for steam heater duties

Alfa Laval SpiralPro for steam heater duties

SpiralPro model heat exchangers optimized for duties involving steam heating of liquids that are highly fouling are also available. Like all SpiralPro units, these are fully accessible for quick and easy cleaning with hydro jets.
The counter-current flow also ensures a very close temperature approach for maximum thermal efficiency.


  • Fouling liquids containing solids or fibres, liquors, slurries and sludges and other challenging fluids that require heating by steam

Watch product animation

SpiralCond for vacuum condensing and evaporation duties

Alfa Laval SpiralCond heat exchanger for vacuum condensing and evaporation duties

SpiralCond model heat exchangers offer a highly efficient solution for challenging two-phase duties, including both condensing and evaporation (reboiling). SpiralCond’s compact design and the fact that it is configured vertically results in a very small footprint, compared to equivalent shell-and-tube exchangers, while also reducing supporting structures, and piping complexity.

SpiralCond units have cross-flow rather than counter-current flow. Each unit is fully customized according to the duty required, with channel spacing adjusted to provide the lowest pressure drop. SpiralCond is therefore ideally suited to vacuum condensing applications.


  • Gases: pure vapour and mixtures with inert gases
  • Vapour/liquid: top condensers, reflux condensers, vacuum condensers, vent condensers, reboilers with fouling fluids, gas coolers

Download product leaflet           Watch product animation

SpiralCond in stacked column configuration

Alfa Laval SpiralCond in stacked column configuration

For condensing and evaporation applications where multiple cooling media are involved, Alfa Laval can deliver SpiralCond model heat exchangers integrated in a column. Like the single stand-alone SpiralCond, this configuration has cross-flow and open channels for extremely low pressure drop in vacuum situations.

The high efficiency of SpiralCond allows the column to be both shorter in height and smaller in diameter than traditional column solutions, thus offering major savings in infrastructure and installation costs.


  • Vapour-liquid: top condensers, reflux condensers, vacuum condensers and vent condensers

Meet our experts

Improving sustainability with welded spiral heat exchangers

Unique design and manufacturing expertise

Improve your process sustainability

The ultimate problem solver

Improving sustainability with welded solutions from Alfa Laval

Alfa Laval welded heat exchangers maximize energy efficiency and heat recovery, with innovations that deliver exceptional thermal performance and reliability, for a wide range of duties. But it’s more than technology. It’s also the people: experienced experts with deep process knowledge and a global service presence. Combined, that’s how you improve sustainability.


Working principle

Alfa Laval spiral heat exchangersAlfa Laval spiral heat exchangers are circular units containing two concentric spiral flow channels, one for each fluid. The different media flow counter currently: one fluid enters the centre of the unit and flows towards the periphery, the other enters the unit at the periphery and moves towards the centre. The channels are curved and have a uniform cross section. There is no risk of intermixing.

The product channel is normally open on one side and closed on the other. The channel for the heating/cooling medium can sometimes be closed on both sides, depending on the cleanliness of the heating/cooling medium. Each channel has one connection in the centre and one on the periphery of the heat exchanger.


The spiral geometry, with a single channel for each medium and continuous curving, is highly suitable for fluids that tend to cause fouling. This design results in high flow turbulence with resulting high shear stress, dramatically reducing the risk of fouling.

The single-channel geometry also creates a scrubbing effect that we refer to as the SelfClean™ design. If fouling does occur in the heat transfer channel, the cross-section of this part of the channel is decreased. However, since the entire flow must still pass through the channel, the velocity increases, the resulting fluid force then flushing away any accumulations of deposits as they form.

Compare this design with shell-and-tube heat exchangers where the flow enters different tubes in parallel. When tubes start to foul, pressure drop increases pushing the fluid to find alternative flow paths. The result is that fouling and clogging of the tubes happens very quickly. With Alfa Laval spirals, on the other hand, fouling and clogging is virtually eliminated.




Frequent cleaning a thing of the past

Mexichem, a global leader in plastic piping systems and in the chemical/petrochemical industries, needed to increase its production capacity to meet market demands.

Happy customers at Mexichem in front of an installed Alfa Laval spiral heat exchanger

The ultimate solution to fouling problems

Leuna Germany’s MIDER refinery, owned by Total S.A., originally installed two tubular heat exchangers for cooling bottoms product in their fluid catalytic cracking unit.

Installed Alfa Laval welded spiral heat exchanger at Mider refinery.

One of the world´s largest zinc producers

"We use these units because they’re very strong and very easy to clean and of course because the thermal efficiency is high." - Francisco Tarmago, Technology Manager, Asturiana de Zinc

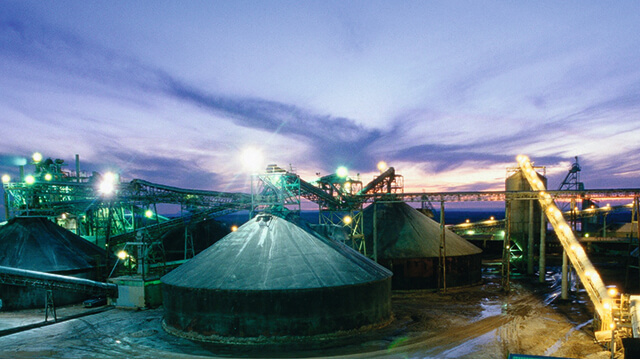

Asturiana zinc production in Spain

Unique features

Compared to other heat exchangers used in similar applications, Alfa Laval spiral designs offer a more compact footprint with increased thermal efficiency.
They are also built with unique features that ensure the most reliable performance:

Alfa Laval welded spirals with SelfClean

Superior cleaning and extended performance

A single channel for each fluid ensures reliable self-cleaning of the unit.

Find out more

Alfa Laval welded spirals with RollWeld

Automated, reliable channel enclosure

An automated bending and welding process for the closure of each channel ensures consistent quality and reliability.

Find out more

Alfa Laval welded spirals with HighP

A custom solution for high-pressure duties

Circular shell design and a self-supporting internal coil improves mechanical strength under high pressure.

Find out more


Qualified support at your facility

True onsite service by skilled engineers, anywhere in the world.

Find out more


Contact us

We will be happy to discuss the benefits a welded spiral heat exchanger can bring you and show how we can help improve your operation.

Man wearing hard hat and safety glasses with crossed arms infront of an installed Alfa Laval welded spiral heat exchanger.
